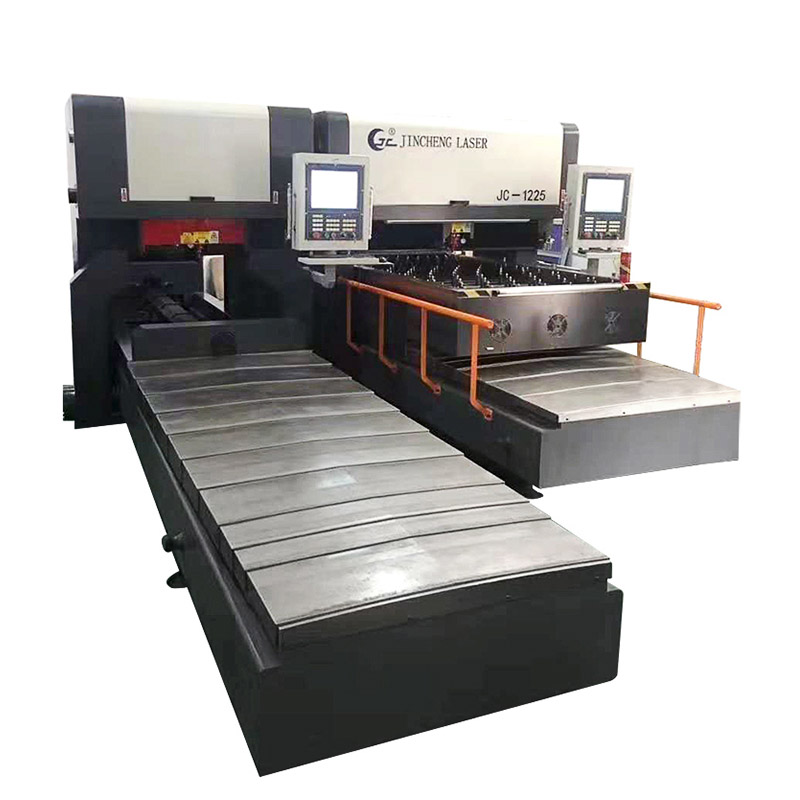

Machine Parameters
| Model | JCPY-F1225/8030-1000W |
| Table structure | Gantry construction |
| Laser output power | 1000W |
| X-axis travel-length | 2400mm |
| Y-axis travel-length | 1200mm |
| Z-axis travel-length | 120mm |
| Cutting speed | 1.2-1.5m/min |
| Re-Positioning Precision | ≤0.02mm |
| Cutting width kerf | 0.45mm, 0.71mm, 1.05/1.07mm at one time (die board) |
| Controlling system | Germany PA |
| Transmission system | Ball screw & Linear guide (TAIWAN) |
| Driving system | Japan high-precision servo motors |
| Optical system | US |
| Overall dimensions(L×W×H) | 9m*8m*2.3m |
| G. Weight | 8000kg |
| Laser generator gas matched | He, N2, CO2(99.999%) |
| Laser cutting thickness | Flat die board:0.1-30mm |
Features and Functions
The structure of gantry with small size is stable and reliable
PA laser dedicated CNC systems, lasers and machine control systems into one
The machine equipped with CAD/CAM dedicated automatic programming software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features
The machine uses fully-enclosed cover, the effect of removing smoke is very good, 100% no smoke left in the workshop when cutting
The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life
The three cutting gases are free to choose. The entire system uses high pressure gas line design, when cut stainless steel plate
Stainless steel plate cover, can bear at least two weighted 80kg men standing on it, no deformation
Eccentric shaft of rotary bed, scientific protection of the axis to avoid high temperature deformation
Quick marking function is optional
Drilling router function is optional
