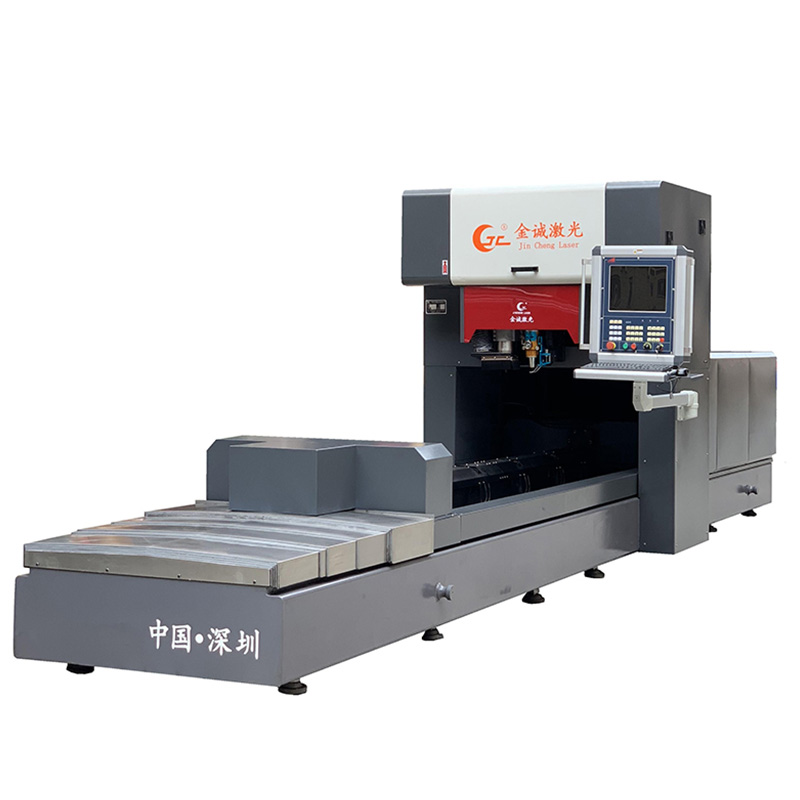

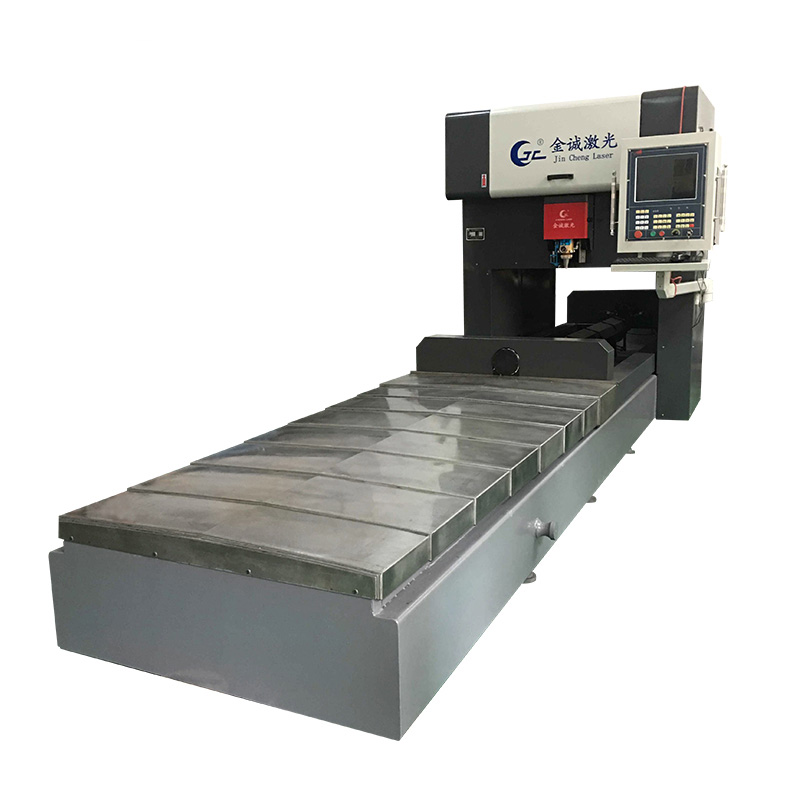

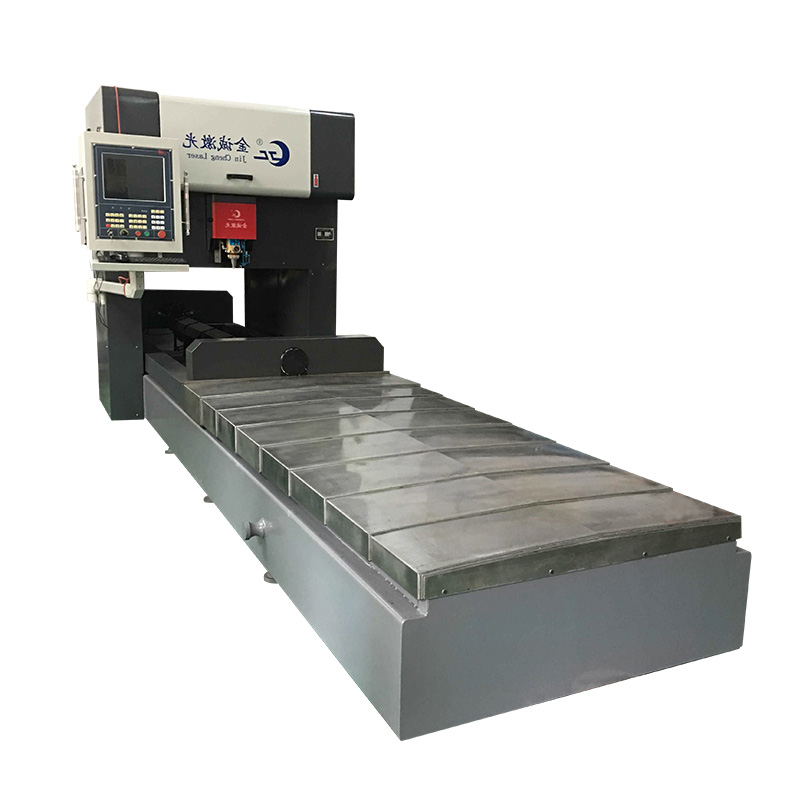

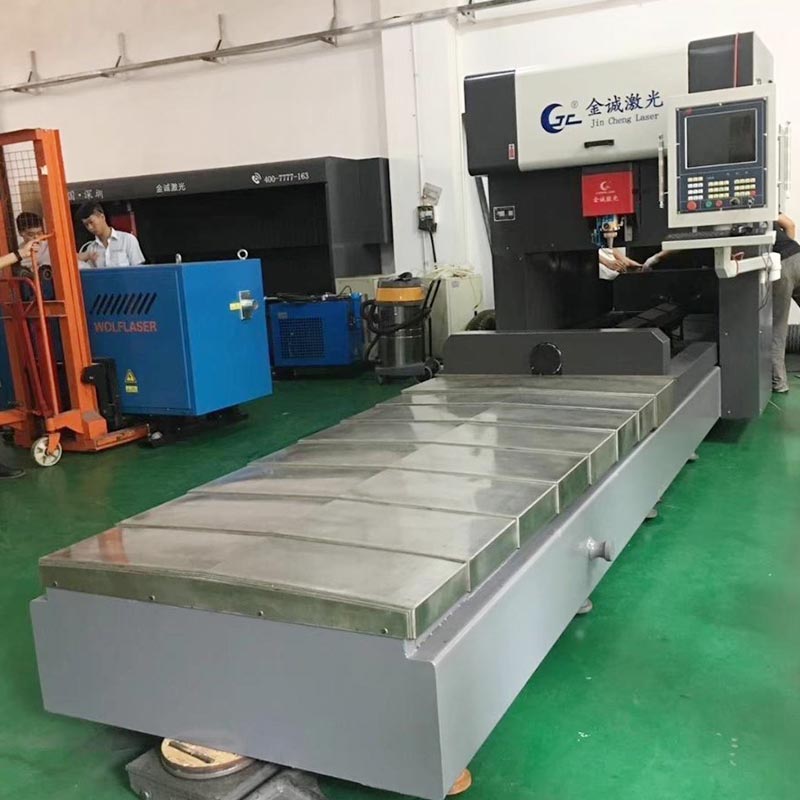

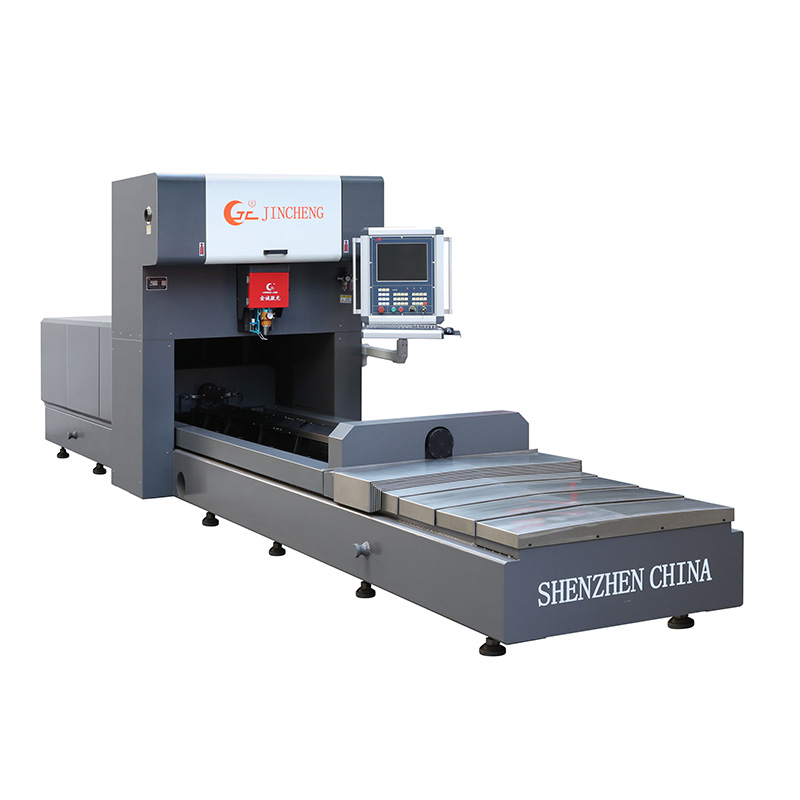

Machine Parameters
| Model No. | JCR-0803-1000w-2000w | |||
| Power | 1000W | 1500W | 2000W | |
| The table moving | Gantry construction | |||
| Laser output power | High power axial flow CO2 laser source | |||
| The maximum cutting board size | 170~800*3000mm | |||
| Cutting speed | 45-65m/h | 55-80m/h | 90-120m/h | |
| Re-Positioning Precision | ≤0.02mm | |||
| Controlling system | Germany PA | |||
| Cutting width kerf | 0.45mm, 0.71mm, 1.05/1.07mm at one time (die board) | |||
| Transmission system | Ball screw & Linear guide (TAIWAN) | |||
| Driving system | Japan high-precision servo motors | |||
| Optical system | US | |||
| Moving structure | Gantry | |||
| Chiller system | Made in China | |||
| Size | 7500*1500*1800mm | |||
| G. Weight | 4200kg | |||
| Laser generator gas matched | He, N2, CO2(99.999%) | |||
| Laser cutting thickness | 0.1-30mm | |||
| Centrifugal blower | 1 set | |||
Features and Functions
The machine has the laser cutting proprietary energy control functions, machine operator functions, laser operation function, and expert cutting technology library, remote diagnostics and other functions
Anti-collision system to protect the laser head from being damaged when power is suddenly off or wrong operation
Auto compensation system for rotary laser to adjust the tolerance when the rotary die board is tiny twisted
The machine equipped with CAD/CAM dedicated automatic programming software which is to facilitate the production of graphics programming and maximize the conservation of raw materials, and special cutting process features
The machine uses upper and lower regional dust removal system at the same time cutting waste funnel fall into the scrap car, which is convenient for operator to clean regularly
The machine uses fully-enclosed cover, the effect of removing smoke is very good, 100% no smoke left in the workshop when cutting
The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life
Stainless steel plate cover, can bear at least two weighted 80kg men standing on it, no deformation
Eccentric shaft of rotary bed, scientific protection of the axis to avoid high temperature deformation
Drilling router function is optional
Counterbore drilling function:automatically drill the counterbore
