Machine Parameters
| Model No. | HD1100 |
| X-axis travel-length | 1100mm |
| Y-axis travel-length | 1100mm |
| Z-axis travel-length | 80mm |
| Moving speed | 15m/min |
| Positioning Precision | 0.01mm |
| Re-Positioning Precision | 0.005mm |
| Max weight of table load | 300KG |
| Resolving power | 0.001 |
| Power | 380V/6KW(three-phase supply) |
| Overall dimensions (LxWxH) | 1600*1700*1400mm |
| G. Weight | 1500kg |
Applications

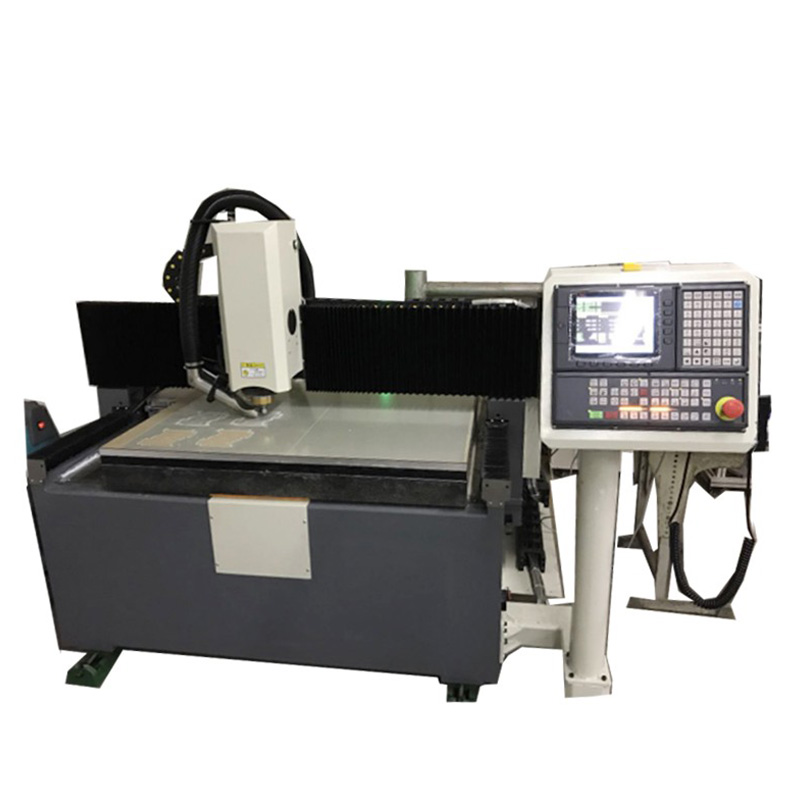

HD1100 pertinax machine is mainly for cutting the pertinax in Sandwich die industry
With stable body structure design, professional CNC control system the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory who need to make the sandwich dies
Features and Functions
High cutting speed, max speed reaches 15 meters per minute Marble working table with perfect flatness
Large spindle power the pertinax cutting result is good p Use standard G code Auto knife changer can finish the production at one time
